LCI16 Lift Control Interface
Encrypted Input/Output Unit for Elevator Control of up to 16 Floors.
Used in conjunction with the intelligent LC400 Lift Controller, the LCI16 Lift Control Interface provides secure, floor‑level access control for up to 16 floors per module.
Integrated Lift Control with AC2000

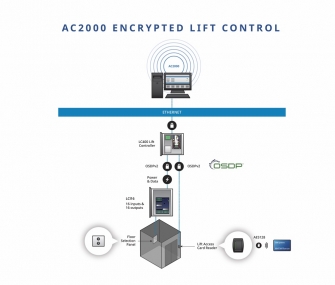

Utilising encrypted Open Supervised Device Protocol (OSDP) communication, the LCI16 enables seamless and reliable integration of building lifts with the AC2000 access control system. Each lift cabin is interfaced with an intelligent LC400 Lift Controller, which communicates with one or more LCI16 units to control elevator floor selection panels.
This seamlessly integrated solution provides real time monitoring and control of access movements between floors, delivering a unified view of door and lift activity within the AC2000 platform. Lift access becomes a natural extension of the access control system rather than a standalone subsystem, reducing infrastructure complexity while improving overall security resilience.
Interested?
The solution supports Open Supervised Device Protocol (OSDP) v2, delivering secure, end to end encrypted communication based on open industry standards. When used with CEM Systems readers (S700 or ioSmart reader), the solution offers AES 128 encryption between the smart card and reader, OSDP v2 secure channel encryption between reader and controller, and TLS secured communication between the LC400 controller and the AC2000 server. This layered approach ensures credential data, commands, and lift control signals remain protected at every stage, helping to mitigate modern cyber and physical security threats.
Designed for mission critical environments, the complete CEM Systems Lift Control solution delivers reliable elevator floor access control for commercial and multi tenant buildings, including demanding sites such as airports, data centres, hospitals, universities, and large enterprise campuses, where availability, security, and operational continuity are essential.
Features
- AC2000 Integrated Lift Control. Floor level access with advanced features like time-based access or user-specific permissions
- Secure OSDP End to end encrypted communication using Open Supervised Device Protocol (OSDP) v2
- Highly Scalable. Controls 16 floors per module; expandable up to 128 floors
- Cost Effective Wiring. Input and Output modules are powered directly from LC400 - lowering wiring costs & reducing installation time
- Status & Diagnostics. Detailed visual inspection LEDs for power, communication, 16 inputs and 16 outputs
